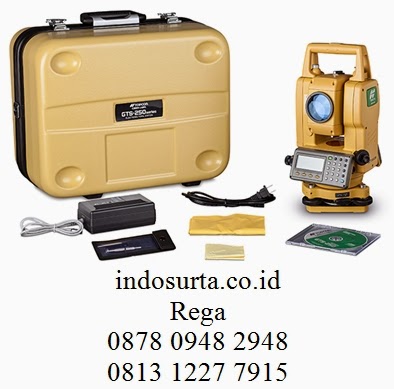

TEMPAT PENJUALAN, SUKU CADANG, RENTAL, SERVIS, DAN KALIBRASI TOPCON GTS-250N

TOPCON GTS-255N
TOTAL STATION



Features :

  • Economical, value priced measuring solution
  • Rugged, durable, water resistant design (IP54)
  • Two accuracies from which to choose: 2" and 5"
  • Dual-axis compensation
  • Onboard programs and 24,000 point data storage
  • Ideal as a construction stakeout total station
  • Range to a single prism is 2000m (6,560ft)
  • Dual display

Specification :


TelescopeLength : 150 Millimeters
Objective Lens Diameter : 45mm (EDM:50mm)
Magnification : 30x
Image : Erect
Field of View : 1°30
Resolve Power : 3 "
Min. Focus Distance : 1.3 meters
Measurement Range
1 Prism : 6560 ft, 2000 meters
3 Prism : 8856 ft, 2700 meters
Measuring Accuracy
Prism Mode : ±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time : 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method : Absolute Reading
Detection : 2 horizontal, 1 vertical
Minimum reading : 5”/1”, 1/5 mgon
Tilt Correction
Type : Automatic Vertical and Horizontal compensator
Method : Liquid surface reflective profile sensor reading type
Compensating Range : ±3'
Correction Unit : 1 arc sec, N/A

Computer Unit

Display : 2 screen, dot matrix graphic LCD display

Power
Approximate battery life : 9 hours including distance measurement , 40 Angle measurement only
Durability
Protection against water and dust : IP54
Temperature :  -20 to 50 degrees C  (-4 to 122 degree F)
Weight : Instrument  4.9KG (10.8lb)
